Plug type PCB terminals | Products
This current location is:
TCSVK-5.0/7.5
click: 3714
A distance between5.0mmDigits2-24PTechnical data?IECULThe rated voltageV250300Rated currentA1210Rated impact voltageKV4Pollution levels3Insulation materialsPA66Flame retardant gradeV0Applicable ambient temperature–40℃～+105℃Optional color5.0
Detailed description
- technical

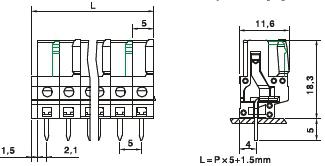

- Dimension
- Ordering
- Related
|
A distance between |
5.0mm |
||
|
Digits |
2-24P |
||
|
Technical data |
? |
IEC |
UL |
|
The rated voltage |
V |
250 |
300 |
|
Rated current |
A |
12 |
10 |
|
Rated impact voltage |
KV |
4 |
|
|
Pollution levels |
3 |
||
|
Insulation materials |
PA66 |
||
|
Flame retardant grade |
V0 |
||
|
Applicable ambient temperature |
–40℃～+105℃ |
||
|
Optional color |
5.0 spacing (white grey) |
||
|
Contact materials |
Copper tin plating |
||
|
Welding needle size |
1.0*1.0mm |
||
No file download
