This current location is:
TCSDK-5.0/7.5
click: 4230
A distance between5.0mmDigits2-24PScope of wiringAWG/mm224-14/0.2-2.5Technical dataIECULThe rated voltageV250300Rated currentA1615Rated impact voltageKV4Pollution levels3Insulation materialsPA66Flame retardant gradeV0Applicable ambient temperature–
Detailed description
- technical

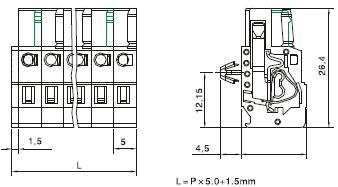

- Dimension
- Ordering
- Related
|
A distance between |
5.0mm |
|||
|
Digits |
2-24P |
|||
|
Scope of wiring |
AWG/mm2 |
24-14/0.2-2.5 |
||
|
Technical data |
IEC |
UL |
||
|
The rated voltage |
V |
250 |
300 |
|
|
Rated current |
A |
16 |
15 |
|
|
Rated impact voltage |
KV |
4 |
||
|
Pollution levels |
3 |
|||
|
Insulation materials |
PA66 |
|||
|
Flame retardant grade |
V0 |
|||
|
Applicable ambient temperature |
–40℃～+105℃ |
|||
|
Optional color |
5.0 spacing (white grey) |
|||
|
Contact materials |
Phosphor bronze tin plating |
|||
|
The shell material |
Stainless steel |
|||
|
Connection mode |
Spring card |
|||
|
Apply to wire |
0.2-2.5 mm2 all kinds of wire |
|||
|
Wire stripping length |
8-9mm/?0.33in |
|||
