Spring loaded PCB terminals | Products
This current location is:
KV235B-5.0/5.08
click: 3431
ElectricalStandardULIECRated voltage300V250VRated current5A15AWire range20-18AWG0.2-2.5SOL, 0.2-1.5STRWithstanding voltageAC2000V/1MinMechanicalAmbient temperature-40°C~+105°CStrip length9-10mmDimensionsPitch5.0mm(.197"),5.08mm(.200")Poles1P-XXPMat
pdf download：click down
Detailed description
- technical

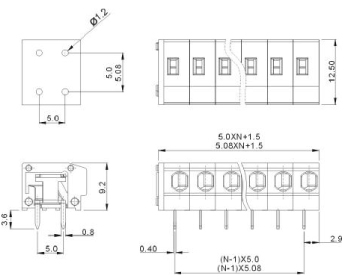

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
5A
|
15A
|
| Wire range |
20-18AWG
|
0.2-2.5SOL, 0.2-1.5STR
|
| Withstanding voltage |
AC2000V/1Min
|
|
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
9-10mm
|
|
| Dimensions | ||
| Pitch |
5.0mm(.197"),5.08mm(.200")
|
|
| Poles |
1P-XXP
|
|
| Material | ||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Phosphor bronze,Tin plated
|
|
| Wire guard |
Stainless steel
|
|
pdf down：click down
