Spring loaded PCB terminals | Products
This current location is:
KV235B-3.81/3.96
click: 2536
ElectricalStandardULIECRated voltage300V250VRated current5A10AWire range20-18AWG1.5mm2 Withstanding voltageAC2000V/1MinMechanicalAmbient temperature-40°C~+105°CStrip length9-10mmDimensionsPitch3.81mm(.150"),3.96mm(.156")Poles1P-XXPMaterialHousingPA
pdf download：click down
Detailed description
- technical

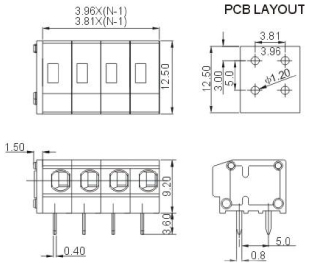

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
5A
|
10A
|
| Wire range |
20-18AWG
|
1.5mm2
|
| Withstanding voltage |
AC2000V/1Min
|
|
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
9-10mm
|
|
| Dimensions | ||
| Pitch |
3.81mm(.150"),3.96mm(.156")
|
|
| Poles |
1P-XXP
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Phosphor bronze,Tin plated
|
|
| Wire guard |
Stainless steel
|
|
pdf down：click down
