The X3 stationary terminals | Products
This current location is:
X3-1003
click: 3146
StandardUL/CERated voltage300VRated current10ALead wire diameter2.5mm2Size: Length/Width/HeightX3-100216.7/19.2/15.7mmRated impact voltage/Pollution level8kV/3Mechanical properties ofScrew gauge/TwistM3/0.6-0.8NmPlug gaugeA3MaterialHousingPP UL94V-0T
Detailed description
- technical

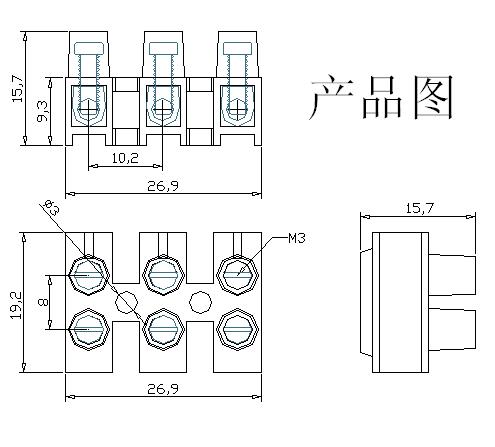

- Dimension
- Ordering
- Related
|
Standard |
UL/CE |
|
|
Rated voltage |
300V |
|
|
Rated current |
10A |
|
|
Lead wire diameter |
2.5mm2 |
|
|
Size: Length/Width/Height |
X3-1002 16.7/19.2/15.7mm |
|
|
Rated impact voltage/Pollution level |
8kV/3 |
|
|
|
||
|
Mechanical properties of |
||
|
Screw gauge/Twist |
M3/0.6-0.8Nm |
|
|
Plug gauge |
A3 |
|
|
|
||
|
|
||
|
Material |
||
|
Housing |
PP UL94V-0 |
|
|
Terminal |
Brass, Nickel plating |
|
|
Screws |
Steel, M3 Nickel plating |
|
No file download
