    Surge protector | Products
    This current location is:Home > Products > Surge protector
    KW-C40
    click: 4790
    Product introductionKW - C40 surge protector (surge protector) used in ac 50 hz / 60 hz, 380 v, TN and TN under - S - C, TN - C - S, TT, IT is power supply system, this product is installed on the 35 mm electric guide shell design, built-in failure f

    Detailed description

    • technical

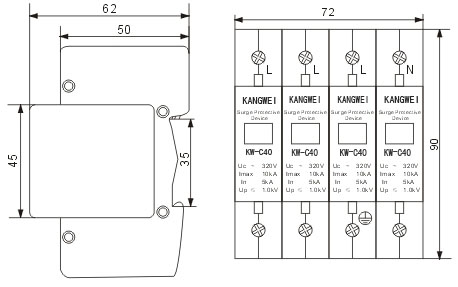

    • Dimension
    • Ordering
    • Related
    • pdf
    Product introduction
    KW - C40 surge protector (surge protector) used in ac 50 hz / 60 hz, 380 v, TN and TN under - S - C, TN - C - S, TT, IT is power supply system, this product is installed on the 35 mm electric guide shell design, built-in failure from the device, when the surge protector for flow overheating, puncture failure, failure from the device can automatically pulled away from the grid, at the same time, visual warning device to a red from green (normal) (failure). The protection module can be replaced with a working voltage.
    Product features
    The inside metal shielding module of the patented technology.
    The technology of overheat and temperature control.
    Module design, installation is convenient, can be changed online.
    Small leakage current, quick response time, low.
    Warning device, green (normal), red (fault).
    Product application and installation location
    Installed in LPZOB area and LPZ1 area with LPZ2 area, usually installed in the center of the floor distribution box, computer, telecom equipment room, elevator control, frequency conversion control room equipment, hospital operating room, care unit and is equipped with electronic medical equipment of power distribution cabinet and dispersible cottage (SPD) should be installed in resident distribution box.
    Product design and order information: 1, the user should specify the model number and quantity in detail when designing and ordering the product. For example: KW - C40/4-385,8.
    Technical parameters

    Maximum continuous working voltage (Uc)

    275V

    320V

    385V

    420V

    440V

    Voltage protection level (Up)

    <1.0kV

    <1.5kV

    <1.5kV

    <2.0kV

    <2.0kV

    Nominal discharge current (In)

    20kA

    Maximum discharge current (Imax)

    40kA

    The response time

    <25 ns

    The test on the basis of

    GB18802.1、IEC61643-1


    No file download
