This current location is:
KV773-254
click: 2981
Electrical propertiesThe reference standardULIECThe rated voltage600V450VRated current20A24ALead wire diameter22-12AWG0.5-2.5mm2Withstand voltageAC2500V/1Min?Mechanical properties ofThe environment temperature-40°C~+105°CWire stripping length10mm
Detailed description
- technical

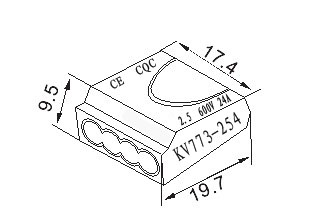

- Dimension
- Ordering
- Related
|
Electrical properties |
||
|
The reference standard |
UL |
IEC |
|
The rated voltage |
600V |
450V |
|
Rated current |
20A |
24A |
|
Lead wire diameter |
22-12AWG |
0.5-2.5mm2 |
|
Withstand voltage |
AC2500V/1Min |
|
|
? |
||
|
Mechanical properties of |
||
|
The environment temperature |
-40°C~+105°C |
|
|
Wire stripping length |
10mm |
|
|
? |
||
|
Size?????????????????????????????????????????????????????????? |
||
|
Spacing |
3.5mm(.138”) |
|
|
The number of |
2P,3P,4P,5P, |
|
|
? |
||
|
Material and electroplating |
||
|
Plastic parts |
PA66,UL94V-0 |
|
|
Shrapnel |
Stainless steel |
|
|
Contact materials |
The electrolytic copper plating silver |
|
