Wire connector | Products
This current location is:
KV773-173
click: 2845
Electrical propertiesThe reference standardULIECThe rated voltage300V450VRated current30A35ALead wire diameter22-12AWG0.75-6mm2Withstand voltageAC2500V/1MinMechanical properties ofThe environment temperature-40°C~+105°CWire stripping length8-10mmSi
Detailed description
- technical
- Dimension
- Ordering
- Related
| Electrical properties | ||
| The reference standard |
UL
|
IEC
|
| The rated voltage |
300V
|
450V
|
| Rated current |
30A
|
35A
|
| Lead wire diameter |
22-12AWG
|
0.75-6mm2
|
| Withstand voltage |
AC2500V/1Min
|
|
| Mechanical properties of | ||
| The environment temperature |
-40°C~+105°C
|
|
| Wire stripping length |
8-10mm
|
|

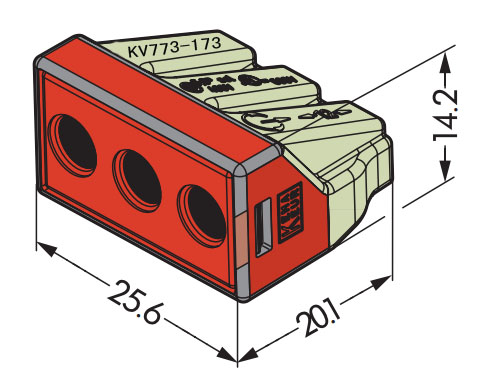

| Size?????????????????????????????????????????????????????????????????????? 20.1×25.6×14.2(MM) | ||
| Spacing |
3.5mm
|
|
| The number of |
3P
|
|
|
|
||
|
Material and electroplating
|
||
| Plastic parts |
PA66,UL94V-0
|
|
| Shrapnel |
Stainless steel
|
|
| Contact materials |
copper
|
|
No file download
