KV222-415
click: 3900
Compact connector line 5 with a lever The maximum continuous operating temperature of 85 ° CRoHS compliantThe project team7（Installation technology）Minimum wire cut area?[mm?]0,8?- 2,5 mm?Minimum connection area of wire?[AWG]18 - 14?AWGApp
Detailed description
- technical
- Dimension
- Ordering
- Related
Compact connector line 5 with a lever The maximum continuous operating temperature of 85 ° C
RoHS compliant
|
The project team |
7（Installation technology） |
|
Minimum wire cut area?[mm?] |
0,8?- 2,5 mm? |
|
Minimum connection area of wire?[AWG] |
18 - 14?AWG |
|
Applicable conductor type |
e+f |
|
The connection method |
CAGE CLAMP?CONNECTION |
|
Minimum connection area of wire?[mm?] |
0.8?-4?mm? |
|
Minimum connection area of wire?[AWG] |
28?- 12 AWG |
|
The connection method |
f |
|
The rated voltage?EN |
400?V |
|
Can withstand the instantaneous peak voltage |
4 kV |
|
Pollution levels |
2 |
|
Pollution levels?EN |
32?A |
|
The rated voltage?EN |
600V |
|
The weight of the |
6,6?g |
|
Color |
Gray |
|
The number of connected wires |
5 |
|
Number of potential |
1 |
|

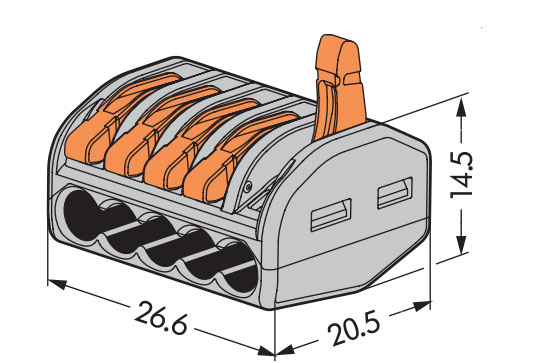

Highly |
14,5?mm |
|
Highly |
0,571in |
|
The thickness of the |
26,6mm |
|
The thickness of the |
1,047?in |
|
The width of the |
20,5 mm |
|
The width of the |
0,807in |
|
Minimum stripping length |
9?mm |
|
Maximum stripping length |
10?mm |
|
Wire stripping length |
0,37 in |
