KV222-413
click: 3166
Compact connector 3 lines with a lever The maximum continuous operating temperature of 85 ° CRoHS compliantThe project team7（Installation technology）Minimum wire cut area[mm?]0,8- 2,5 mm?Minimum connection area of wire[AWG]18 - 14AWGApplicable
Detailed description
- technical
- Dimension
- Ordering
- Related
Compact connector 3 lines with a lever The maximum continuous operating temperature of 85 ° C
RoHS compliant
|
The project team |
7（Installation technology） |
|
Minimum wire cut area [mm?] |
0,8 - 2,5 mm? |
|
Minimum connection area of wire [AWG] |
18 - 14 AWG |
|
Applicable conductor type |
e+f |
|
The connection method |
CAGE CLAMP®CONNECTION |
|
Minimum connection area of wire [mm?] |
0.8 -4 mm? |
|
Minimum connection area of wire [AWG] |
28 - 12 AWG |
|
The connection method |
f |
|
The rated voltage EN |
400 V |
|
Can withstand the instantaneous peak voltage |
4 kV |
|
Pollution levels |
2 |
|
Pollution levels EN |
32 A |
|
The weight of the |
4,153 g |
|
Color |
Gray |
|
The number of connected wires |
3 |
|
Number of potential |
1 |
|

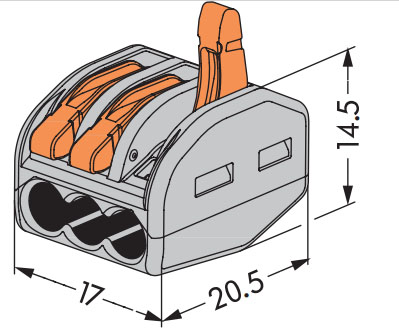

Highly |
14,5 mm |
|
Highly |
0,571in |
|
The thickness of the |
17mm |
|
The thickness of the |
0,669 in |
|
The width of the |
20,5 mm |
|
The width of the |
0,807in |
|
Minimum stripping length |
9 mm |
|
Maximum stripping length |
10 mm |
|
Wire stripping length |
0,37 in |
|
Wiring direction |
Lateral connection |
