IN series connection terminal | Products
This current location is:
IN200K
click: 4674
StandardUL/CERated voltage600VRated current240ALead wire diameter100mm2Size: Length/Width/Height58/90/40mmRated impact voltage/Pollution level8kV/3Mechanical properties ofScrew gauge/TwistM10/25-30NmPlug gaugeB15MaterialHousingPC UL94V-0TerminalBrass
Detailed description
- technical

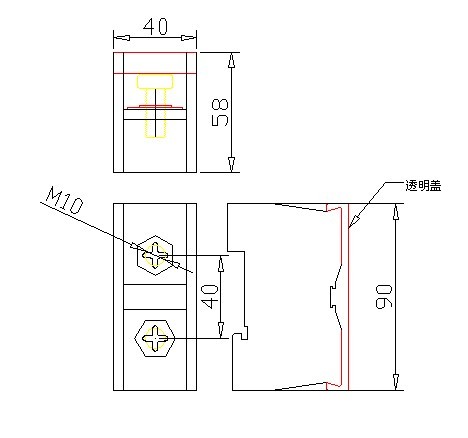

- Dimension
- Ordering
- Related
|
UL/CE |
|
|
Rated voltage |
600V |
|
Rated current |
240A |
|
Lead wire diameter |
100mm2 |
|
Size: Length/Width/Height |
58/90/40mm |
|
Rated impact voltage/Pollution level |
8kV/3 |
|
|
|
|
Mechanical properties of |
|
|
Screw gauge/Twist |
M10/25-30Nm |
|
Plug gauge |
B15 |
|
|
|
|
|
|
|
Material |
|
|
Housing |
PC UL94V-0 |
|
Terminal |
Brass, Nickel plating |
|
Screws |
Steel, M10 Nickel plating |
No file download
