IN series connection terminal | Products
This current location is:
IN60BK
click: 4034
StandardUL/CERated voltage600VRated current90ALead wire diameter22mm2Size: Length/Width/Height40/45/23mmRated impact voltage/Pollution level8kV/3Mechanical properties ofScrew gauge/TwistM6/3.2-3.7NmPlug gaugeB9MaterialHousingPC UL94V-0TerminalBrass,
Detailed description
- technical

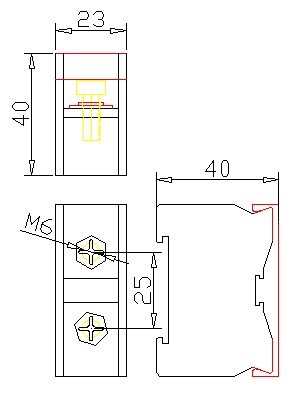

- Dimension
- Ordering
- Related
|
UL/CE |
|
|
Rated voltage |
600V |
|
Rated current |
90A |
|
Lead wire diameter |
22mm2 |
|
Size: Length/Width/Height |
40/45/23mm |
|
Rated impact voltage/Pollution level |
8kV/3 |
|
|
|
|
Mechanical properties of |
|
|
Screw gauge/Twist |
M6/3.2-3.7Nm |
|
Plug gauge |
B9 |
|
|
|
|
|
|
|
Material |
|
|
Housing |
PC UL94V-0 |
|
Terminal |
Brass, Nickel plating |
|
Screws |
Steel, M6 Nickel plating |
No file download
