UK rail type terminal | Products
This current location is:
UK10RD
click: 3356
CapabilityApproval Certification Link StandardULIECVoltage600V800VCurrent10A10AWire size20-6AWG0.5-16mm2 T/W/End plate12/62/-mmHeight (NS35:7.5/NS35:15/NS32)59/66.5/64mmRated Surge Voltage/Contamination Class4kV/3Stripping Length11 mmScrew Thread/Ti
pdf download：click down
Detailed description
- technical
- Dimension

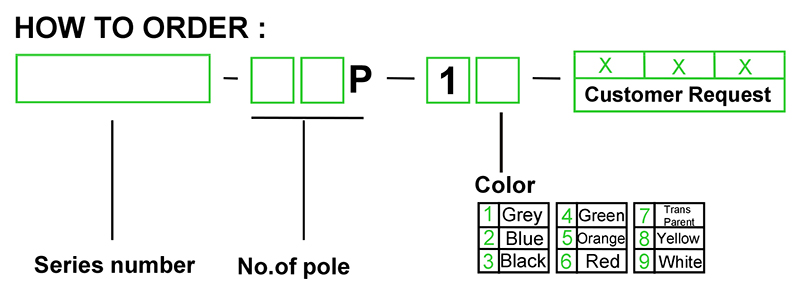

- Ordering
- Related
| Capability | |||
| Approval |
 Certification Link
|
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
600V
|
800V
|
|
| Current |
10A
|
10A
|
|
| Wire size |
20-6AWG
|
0.5-16mm2
|
|
| T/W/End plate |
12/62/-mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
59/66.5/64mm
|
||
| Rated Surge Voltage/Contamination Class |
4kV/3
|
||
| Stripping Length |
11 mm
|
||
| Screw Thread/Tightening Torque |
M4/1.2Nm
|
||
| Internal Cylindrical Gage |
B6
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
