KV301-5.0
click: 7897
ElectricalStandardULIECRated voltage300V250VRated current15A17.5AWire range22-14AWG1.5mm2 Withstanding voltage2KVMechanicalTorque0.4Nm(3.5Lb.In)Ambient temperature-30°C~+120°CStrip length5-6mmDimensionsPitch5.0mm(.197")Poles2P,3P-24PMaterialHousing
pdf download：click down
Detailed description
- technical

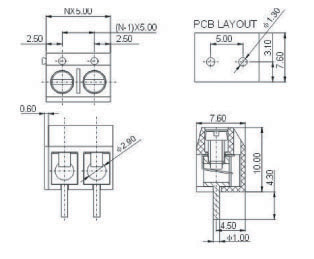

- Dimension

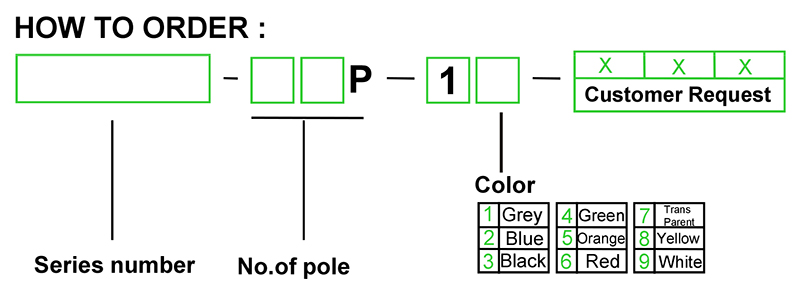

- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
15A
|
17.5A
|
| Wire range |
22-14AWG
|
1.5mm2
|
| Withstanding voltage |
2KV
|
|
| Mechanical | ||
| Torque |
0.4Nm(3.5Lb.In)
|
|
| Ambient temperature |
-30°C~+120°C
|
|
| Strip length |
5-6mm
|
|
| Dimensions | ||
| Pitch |
5.0mm(.197")
|
|
| Poles |
2P,3P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PBT,UL94V-0
|
|
| Screws |
M2.5,steel,Cr3+ Zn plated
|
|
| Pin header |
Brass,Tin plated
|
|
| Wire guard |
Stainless steel
|
|
