Screw type PCB terminals | Products
This current location is:
KV128-5.0
click: 3015
ElectricalStandardULIECRated voltage300V250VRated current15A18AWire range24-12AWG2.5mm2 Withstanding voltageAC2000V/1MinMechanicalTorque0.4Nm(3.5Lb-In.)Ambient temperature-40°C~+105°CStrip length7mmDimensionsPitch5.0mm(.197")Poles2P,3P-24PMaterialH
pdf download：click down
Detailed description
- technical

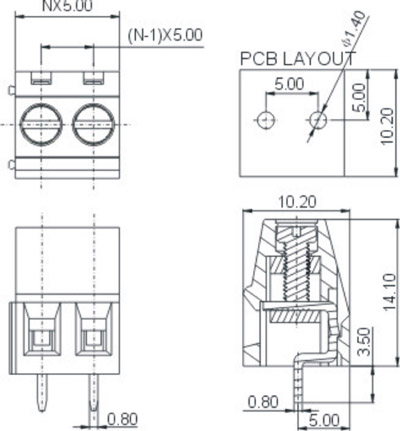

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
15A
|
18A
|
| Wire range |
24-12AWG
|
2.5mm2
|
| Withstanding voltage |
AC2000V/1Min
|
|
| Mechanical | ||
| Torque |
0.4Nm(3.5Lb-In.)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
7mm
|
|
| Dimensions | ||
| Pitch |
5.0mm(.197")
|
|
| Poles |
2P,3P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2.5,steel,Cr3+ Zn plated
|
|
| Pin header |
Brass,Tin plated
|
|
| Cage |
Brass,Ni plated
|
|
pdf down：click down
