UK rail type terminal | Products
This current location is:
UK2.5B
click: 7820
Capability Approval Certification Link Certification Link Standard UL IEC Voltage 600V 800V Current 20A 24A Wire size 24-12AWG 0.2-2.5mm2 T/W/End plate 6.2/42.5/1.5mm Height (NS35:7.5/NS35:15/NS32) 42/49.5/47mm Rated Surge Voltage/Contamination Cla
pdf download：click down
Detailed description
- technical
- Dimension

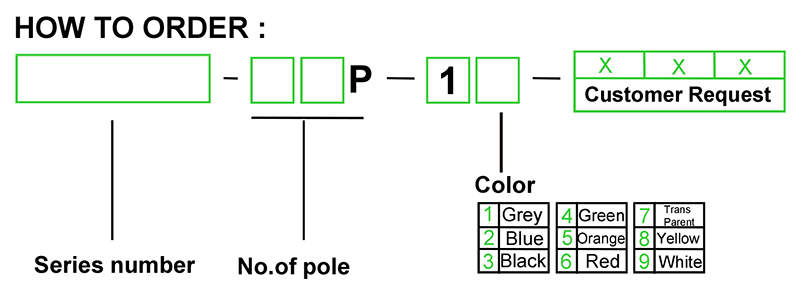

- Ordering
- Related
| Capability | |||
| Approval |
 Certification Link
|
 Certification Link
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
600V
|
800V
|
|
| Current |
20A
|
24A
|
|
| Wire size |
24-12AWG
|
0.2-2.5mm2
|
|
| T/W/End plate |
6.2/42.5/1.5mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
42/49.5/47mm
|
||
| Rated Surge Voltage/Contamination Class |
8kV/3
|
||
| Stripping Length |
7 mm
|
||
| Screw Thread/Tightening Torque |
M3/0.5Nm
|
||
| Internal Cylindrical Gage |
A3
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
