SAK JXB guide rail type terminal | Products
This current location is:
SAK-35JD
click: 4514
CapabilityApprovalCertification Link Certification Link StandardULIECVoltage--Current--Wire size14AWG4.0-35mm2 T/W/End plate16/58/-mmHeight (NS35:7.5/NS35:15/NS32)60/67.5mmStripping Length20 mmTightening Torque:Screw Thread/Tightening TorqueM6/2.5NmT
pdf download：click down
Detailed description
- technical

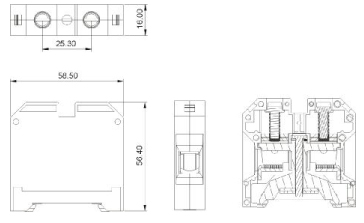

- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
 Certification Link
|
 Certification Link
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
14AWG
|
4.0-35mm2
|
| T/W/End plate |
16/58/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
60/67.5mm
|
|
| Stripping Length |
20 mm
|
|
| Tightening Torque:Screw Thread/Tightening Torque |
M6/2.5Nm
|
|
| Tightening Torque(Fixing Screw):Screw Thread/Tightening Torque |
M4/1.2Nm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
