SAK JXB guide rail type terminal | Products
This current location is:
SAK-10JD
click: 3328
CapabilityApprovalCertification Link StandardULIECVoltage--Current--Wire size20-8AWG0.5-10mm2 T/W/End plate10/56/-mmHeight (NS35:7.5/NS35:15/NS32)44/51.5mmStripping Length12 mmTightening Torque:Screw Thread/Tightening TorqueM4/1.2NmTightening Torque(
pdf download：click down
Detailed description
- technical

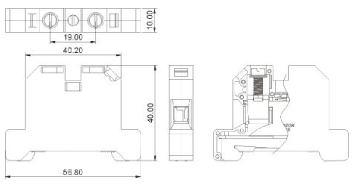

- Dimension

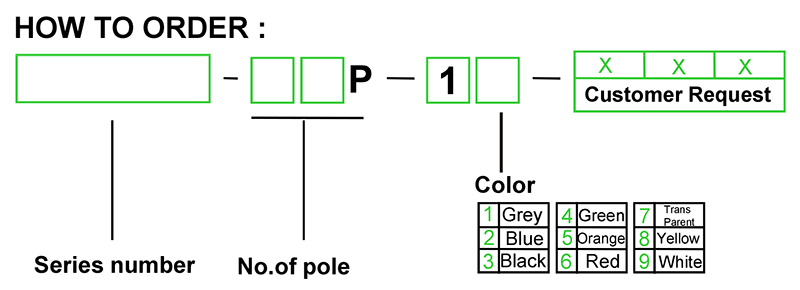

- Ordering
- Related
| Capability | ||
| Approval |
|
 Certification Link
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
20-8AWG
|
0.5-10mm2
|
| T/W/End plate |
10/56/-mm
|
|
| Height (NS35:7.5/NS35:15/NS32) |
44/51.5mm
|
|
| Stripping Length |
12 mm
|
|
| Tightening Torque:Screw Thread/Tightening Torque |
M4/1.2Nm
|
|
| Tightening Torque(Fixing Screw):Screw Thread/Tightening Torque |
M3/0.5Nm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
