SAK JXB guide rail type terminal | Products
This current location is:
SAK2.5JD
click: 3268
CapabilityApprovalCertification LinkCertification LinkStandardULIECVoltage--Current--Wire size24-12AWG0.5-2.5mm2T/W/End plate6/56/-mmHeight (NS35:7.5/NS35:15/NS32)40/47.5mmStripping Length10 mmTightening Torque:Screw Thread/Tightening TorqueM2.5/0.4N
pdf download：click down
Detailed description
- technical

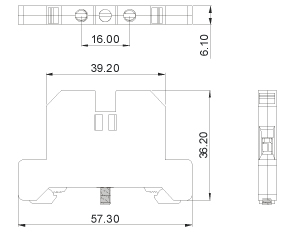

- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
 Certification Link
|
 Certification Link
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
-
|
-
|
|
| Current |
-
|
-
|
|
| Wire size |
24-12AWG
|
0.5-2.5mm2
|
|
| T/W/End plate |
6/56/-mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
40/47.5mm
|
||
| Stripping Length |
10 mm
|
||
| Tightening Torque:Screw Thread/Tightening Torque |
M2.5/0.4Nm
|
||
| Tightening Torque(Fixing Screw):Screw Thread/Tightening Torque |
M3/0.5Nm
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
