SAK JXB guide rail type terminal | Products
This current location is:
SAK-35EN
click: 3444
CapabilityApproval Certification Link Certification LinkStandardULIECVoltage600V1000VCurrent100A125AWire size12-2AWG10-35mm2T/W/End plate18/58/1.5mmHeight (NS35:7.5/NS35:15/NS32)63.5/71/63.5mmRated Surge Voltage/Contamination Class8kV/3Stripping Leng
pdf download：click down
Detailed description
- technical

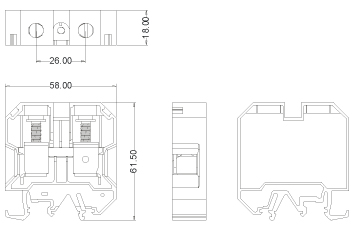

- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
 Certification Link
|
 Certification Link
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
600V
|
1000V
|
|
| Current |
100A
|
125A
|
|
| Wire size |
12-2AWG
|
10-35mm2
|
|
| T/W/End plate |
18/58/1.5mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
63.5/71/63.5mm
|
||
| Rated Surge Voltage/Contamination Class |
8kV/3
|
||
| Stripping Length |
20 mm
|
||
| Screw Thread/Tightening Torque |
M6/2.5Nm
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
