Plug type PCB terminals | Products
This current location is:
15EDGKD-2.5
click: 2398
APPROVAL?Certification Link ?Certification Link ElectricalStandardULIECRated voltage150V250VRated current4A5AWire range26-20AWG0.2-0.5mm2 Rated impulse voltage2.5KV?MechanicalAmbient temperature-40°C~+105°CStrip length8mm?DimensionsPitch2.5mm(.
pdf download：click down
Detailed description
- technical

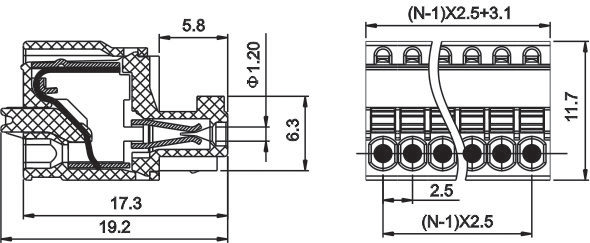

- Dimension
- Ordering
- Related
| APPROVAL | ||
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
150V
|
250V
|
| Rated current |
4A
|
5A
|
| Wire range |
26-20AWG
|
0.2-0.5mm2
|
| Rated impulse voltage |
2.5KV
|
|
| ? | ||
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
8mm
|
|
| ? | ||
| Dimensions | ||
| Pitch |
2.5mm(.098")
|
|
| Poles |
2P-12P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Contact |
Phosphor bronze
|
|
| Wire guard |
Stainless steel
|
|
?Certification Link
?Certification Link
pdf down：click down
