Plug type PCB terminals | Products
This current location is:
2EDGVH-5.0/5.08
click: 3644
APPROVAL?Certification Link ?Certification Link ElectricalStandardULIECRated voltage300V320VRated current15A10AWithstanding voltage4KV?MechanicalAmbient temperature-40°C~+105°C?DimensionsPitch5.0mm(.197"),5.08mm(.200")Poles2*(2P-24P)?MaterialH
pdf download：click down
Detailed description
- technical

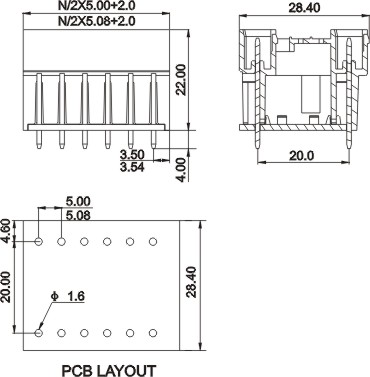

- Dimension
- Ordering
- Related
| APPROVAL | ||
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
320V
|
| Rated current |
15A
|
10A
|
| Withstanding voltage |
4KV
|
|
| ? | ||
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| ? | ||
| Dimensions | ||
| Pitch |
5.0mm(.197"),5.08mm(.200")
|
|
| Poles |
2*(2P-24P)
|
|
|
?
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Copper,Tin plated
|
|
?Certification Link
?Certification Link
pdf down：click down
