Plug type PCB terminals | Products
This current location is:
2EDGVM-7.5/7.62
click: 3340
APPROVAL?Certification Link ?Certification Link ElectricalStandardULIECRated voltage300V400VRated current15A20AWithstanding voltage4.0KVMechanicalAmbient temperature-40°C~+105°CDimensionsPitch7.5mm(.295") 7.62mm(.300")Poles2P-12PMaterialHousingPA
pdf download：click down
Detailed description
- technical

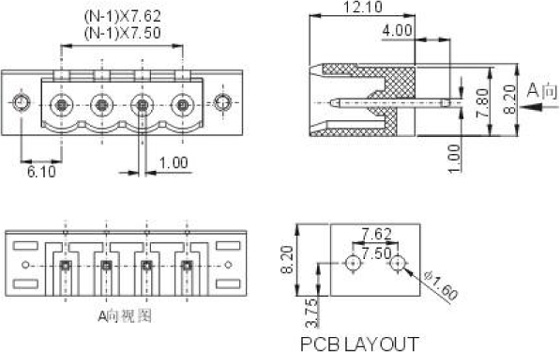

- Dimension
- Ordering
- Related
| APPROVAL | ||
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
400V
|
| Rated current |
15A
|
20A
|
| Withstanding voltage |
4.0KV
|
|
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Dimensions | ||
| Pitch |
7.5mm(.295") 7.62mm(.300")
|
|
| Poles |
2P-12P
|
|
| Material | ||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Copper,Tin-plated
|
|
| Nut |
M2.5,Brass
|
|
?Certification Link
?Certification Link
pdf down：click down
