Plug type PCB terminals | Products
This current location is:
HT508R-5.08
click: 2309
APPROVAL?Certification Link?Certification LinkElectricalStandardULIECRated voltage150V320VRated current12A20AWithstanding voltage2500V/1Min?MechanicalAmbient temperature-40°C~+105°C?DimensionsPitch5.08mm(.200")Poles2P-24P?MaterialHousingPA66,U
pdf download：click down
Detailed description
- technical

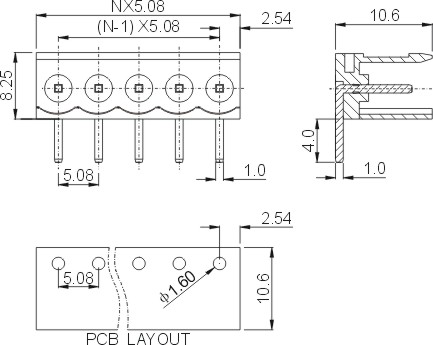

- Dimension
- Ordering
- Related
| APPROVAL |
 ?Certification Link
|
 ?Certification Link
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
150V
|
320V
|
| Rated current |
12A
|
20A
|
| Withstanding voltage |
2500V/1Min
|
|
| ? | ||
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| ? | ||
| Dimensions | ||
| Pitch |
5.08mm(.200")
|
|
| Poles |
2P-24P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Copper,Tin plated
|
|
pdf down：click down
