Plug type PCB terminals | Products
This current location is:
HT396K-3.96
click: 2497
APPROVAL?Certification Link ElectricalStandardULIECRated voltage150V250VRated current15A20AWire range28-14AWG1.5mm2 Withstanding voltageAC2000V/1Min MechanicalTorque0.2Nm(1.7Lb-In)Ambient temperature-40°C~+105°CStrip length7mmDimensionsPitch3.96mm
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| APPROVAL |
 ?Certification Link
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
150V
|
250V
|
| Rated current |
15A
|
20A
|
| Wire range |
28-14AWG
|
1.5mm2
|
| Withstanding voltage |
AC2000V/1Min
|
|
| Mechanical | ||
| Torque |
0.2Nm(1.7Lb-In)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
7mm
|
|

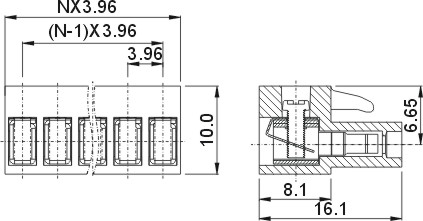

| Dimensions | ||
| Pitch |
3.96mm(.156")
|
|
| Poles |
2P-24P
|
|
| Material | ||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2,Steel,Cr3+Zn-plated
|
|
| Contact |
Copper
|
|
| Cage |
Brass,Ni-plated
|
|
pdf down：click down
