Plug type PCB terminals | Products
This current location is:
2EDGRH-3.5/3.81
click: 2641
APPROVAL ElectricalStandardULIECRated voltage300V250VRated current8A7ARated impulse voltage2.5KVMechanicalAmbient temperature-40°C~+105°CDimensionsPitch3.5mm(.138") 3.81mm(.150")Poles2*(2P-24P)MaterialHousingPA66,UL94V-0Pin headerBrass,Tin plated
pdf download：click down
Detailed description
- technical

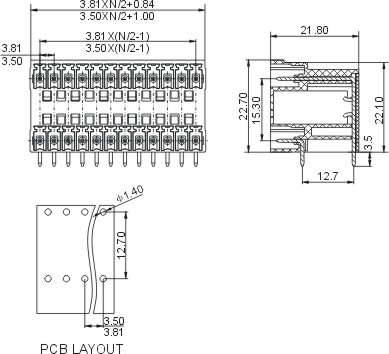

- Dimension
- Ordering
- Related
| APPROVAL |
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
8A
|
7A
|
| Rated impulse voltage |
2.5KV
|
|
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Dimensions | ||
| Pitch |
3.5mm(.138") 3.81mm(.150")
|
|
| Poles |
2*(2P-24P)
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Pin header |
Brass,Tin plated
|
|
pdf down：click down
