Spring loaded PCB terminals | Products
This current location is:

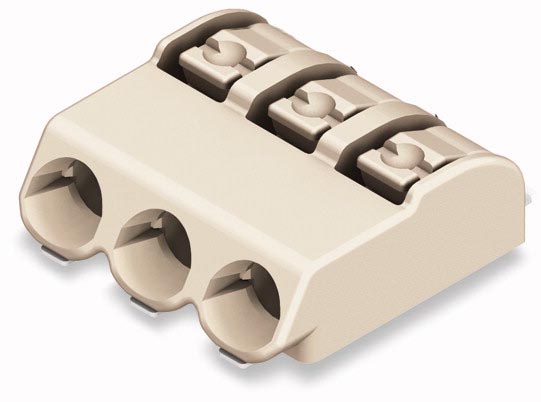

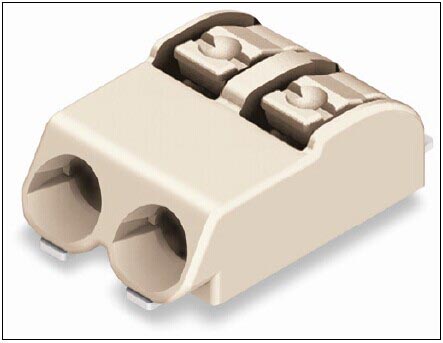

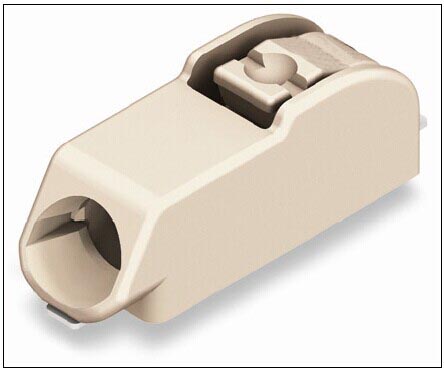

KV2060貼片端子
click: 4975
ElectricalStandardULIECRated voltage300V3200VRated current9A9AWire range22-18AWG0.2-0.75mm2 Withstanding voltageAC600V/1Min?MechanicalAmbient temperature-40°C~+105°CStrip length6-7mm?DimensionsPitch4mmPoles1P-3P?MaterialHousingPC,UL94 V-2Wire gu
Detailed description
- technical

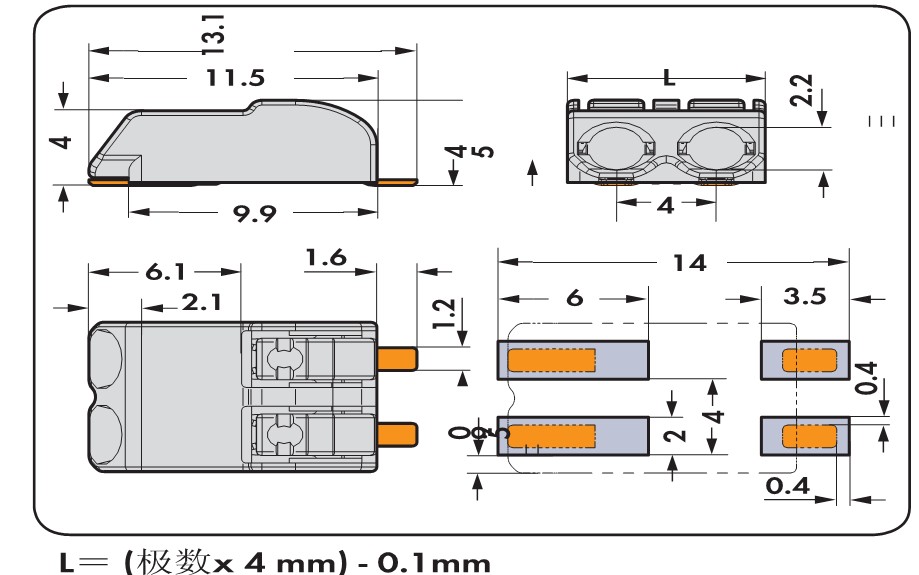

- Dimension
- Ordering
- Related
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
3200V
|
| Rated current |
9A
|
9A
|
| Wire range |
22-18AWG
|
0.2-0.75mm2
|
| Withstanding voltage |
AC600V/1Min
|
|
| ? | ||
| Mechanical | ||
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
6-7mm
|
|
| ? | ||
| Dimensions | ||
| Pitch |
4mm
|
|
| Poles |
1P-3P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PC,UL94 V-2
|
|
| Wire guard |
High precision phosphor bronze, tin plating
|
|
| Contact |
High precision phosphor bronze
|
|
