Wire connector | Products
This current location is:
KV121
click: 4100
The project team7 (Installation technology)Minimum sectional area of connectable wire [mm?]0,08 - 2,5 mm?Minimum sectional area of connectable wire [AWG]28 - 14 AWGApplicable conductor typee+fThe connection methodCAGE CLAMP®CONNECTIONMinimum sect
pdf download：click down
Detailed description
- technical

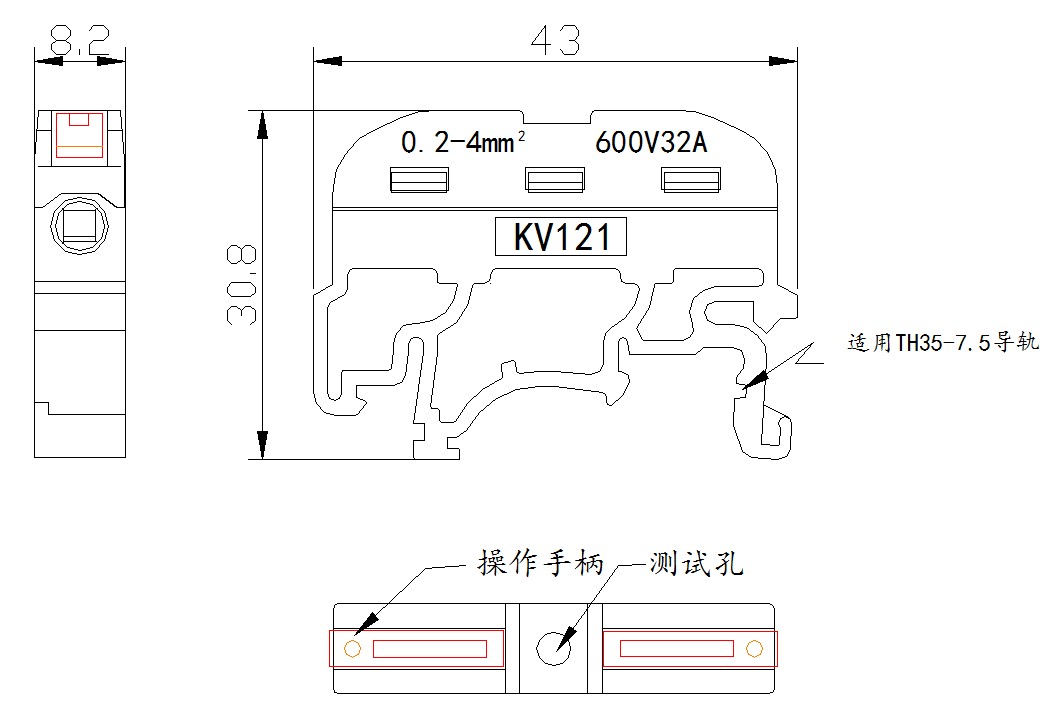

- Dimension
- Ordering
- Related
| The project team | 7 (Installation technology) | |
| Minimum sectional area of connectable wire [mm?] | 0,08 - 2,5 mm? | |
| Minimum sectional area of connectable wire [AWG] | 28 - 14 AWG | |
| Applicable conductor type | e+f | |
| The connection method | CAGE CLAMP®CONNECTION | |
| Minimum sectional area of connectable wire [mm?] | 0,08 - 4 mm? | |
| Minimum sectional area of connectable wire [AWG] | 28 - 12 AWG | |
| Applicable conductor type | f | |
| The rated voltage EN | 250 V | |
| Can withstand instantaneous peak voltage | 4 kV | |
| Pollution levels | 2 | |
| Rated current EN | 32 A | |
| weight | 3,072 g | |
| color | grey | |
| Wiring direction | Lateral connection | |
| Number of connectable wires | 2 | |
| Number of potential | 1 | |
| height | 14,5 mm | |
| height | ||
| thickness | 8.2 mm | |
| thickness | ||
| width | 43mm | |
| Apply to guide | TH35/7.5 | |
| Minimum stripping length | 9 mm | |
| Maximum stripping length | 10 mm | |
| Wire stripping length | 0,37 in |
